EE- LS1024EU - 10 amp 12/24 volt

Max Charge Current: 10 Amps
System Voltage: 12/24V

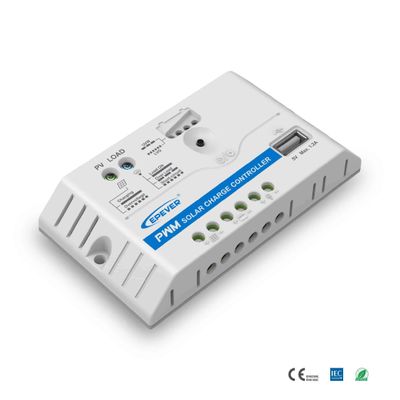

LandStar E(EU) series is a reliable, stable, and economical solar charge controller, easy to operate. Based on the LS-E series, the LS-EU series adds a +5V/1.2A USB terminal output which can charge mobile phones, power DC fans, and other DC electronic devices.

 LED display of charging function Voltage-display by changing color
Main Features:

3-Stage intelligent PWM charging：Bulk, Boost/Equalize, Float

Support 3 charging options: Sealed, Gel, and Flooded
Battery status LED indicator can indicates battery situation
Battery type and load output can be set via button
Extensive Electronic protection

Nominal Amperage:: 10A

Nominal Voltage:      12/24V
Max. PV Voltage:       50V
USB output: 5V 1.2A
Dimensions:       101.2×67×21.8 mm
Mounting:           92.7mm
Weight:                100g
